Data Sheet

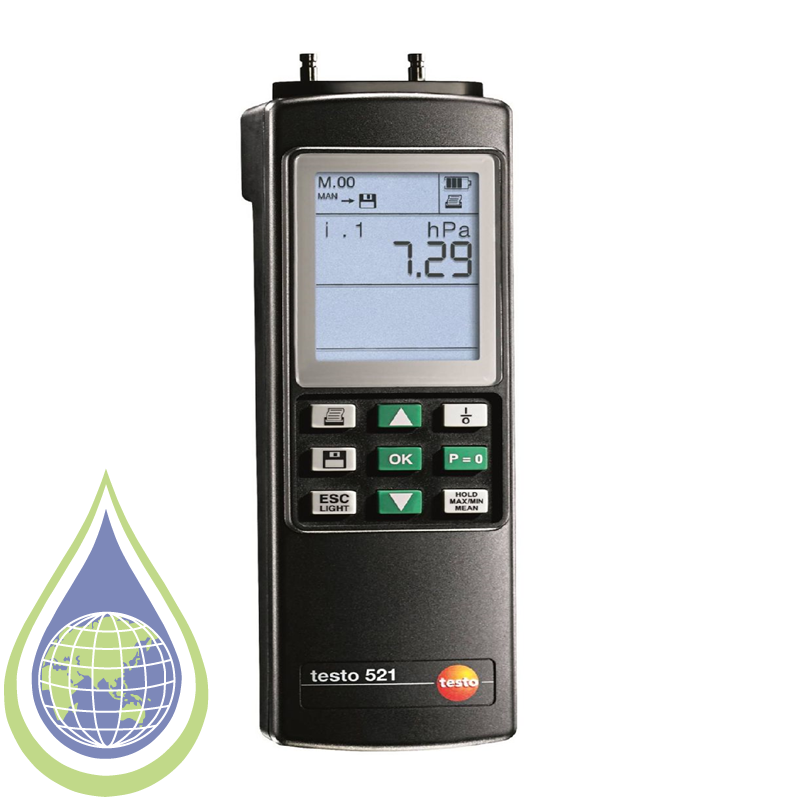

The testo 521-3 differential pressure measuring instrument is designed for high-precision differential pressure measurements in air conditioning and ventilation technology. It can be used, for example, for measurements in clean rooms and for flue inspections – thanks to a high level of accuracy and outstanding resolution. In conjunction with a Pitot tube (optional), the integrated pressure sensor measures flow velocities of +1 to +20 m/s. The integrated temperature-compensated differential pressure sensor performs measurements to an accuracy of up to ± 0.5 Pa. In addition, you can attach up to 2 further optional probes to the measuring instrument. This means you can flexibly adapt the differential pressure measuring instrument to your application. You have the choice of the following probes: Differential pressure probes Absolute pressure probes Relative pressure probes Temperature probes (e.g. surface probes or immersion and penetration probes) The practical features of the testo 521-3 differential pressure measuring instrument The integrated differential pressure sensor enables the testo 521-3 measuring instrument to calculate flow velocity and volume flow using a Pitot tube (which can be ordered separately). The differential pressure measuring instrument also offers timed and multi-point mean calculation. The optional ComSoft software enables you to save the measurement data so that it is linked to the measuring location and analyze it on the PC. You can use the optional testo fast printer to print out measurement data directly at the measuring location. You can choose between the following units for pressure measurement: mbar, hPa, bar, Pa, kPa, inH2O, mmH2O, torr and psi. The mean value, the last measured value and the min./max. values can be displayed at the press of a button. testo 521-3 differential pressure measuring instrument, including calibration protocol and batteries. Customers who viewed this product also viewed Customers who viewed this product also viewed testo 510 set – differential pressure measuring instrument Differential pressure measurement from 0 to 100 hPa  Flow measurement possible with a Pitot tube (available as an option)   : 0563 0510 Customers who viewed this product also viewed testo 420 – Differential pressure measuring instrument Differential pressure measurement, e.g. to check filters in air conditioning and ventilation systems Calculate flow velocity and volume flow using a Pitot tube : 0560 0420 Customers who viewed this product also viewed testo 440 dP – Air velocity and IAQ measuring instrument including differential pressure sensor Intuitive: clearly structured measurement menus for volume flow, K-factor, degree of turbulence, cooling/heating output, mould detection and long-term measurement, such as CO₂ Wireless: Bluetooth® probes for extra convenience when measuring and less cable clutter in the measuring case (please order probes separately) : 0560 4402 Customers who viewed this product also viewed testo 440 delta P Air Flow ComboKit 1 with Bluetooth® Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, differential pressure, humidity and temperature in ventilation ducts or at ventilation outlets​ Smart: simply combine the universal Bluetooth handle with the 100 mm vane or hot wire probe head and the extendable telescope (1.0 m)​ : 0563 4409 Customers who viewed this product also viewed testo 400 – Universal IAQ instrument Smart, intuitive measurement programs including HVAC grid measurement as per EN ISO 12599 and ASHRAE 111, PMV/PPD and turbulence as per EN ISO 7730 and ASHRAE 55 High-precision, location-independent and integrated differential pressure sensor : 0560 0400 Customers who viewed this product also viewed testo 400 air flow kit with hot wire probe Standard-compliant determination of the volume flow in ducts using grid measurements as per EN ISO 12599 and ASHRAE 111 Determination of the volume flow at outlets by measuring the reference pressure and entering the manufacturer-specific K-factor : 0563 0400 71 Customers who viewed this product also viewed testo 400 air flow kit with 16 mm vane probe Standard-compliant determination of the volume flow in ducts using grid measurements as per EN ISO 12599 and ASHRAE 111 Determination of the volume flow at outlets by measuring the reference pressure and entering the manufacturer-specific K-factor : 0563 0400 72 Customers who viewed this product also viewed testo 440 delta P Air Flow ComboKit 2 with Bluetooth® Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, differential pressure, humidity and temperature in ventilation ducts, at ventilation outlets Smart: combine the universal Bluetooth handle with the humidity/temperature probe head or extendable telescope (1.0 m). Vane probe heads (Ø 16 mm, Ø 100 mm) can simply be plugged into the telescope : 0563 4410 Customers who viewed this product also viewed testo 512-1 – Digital differential pressure measuring instrument with App connection Simple, fast and precise differential pressure measurement (0 to 200 hPa) for checking filters and for Pitot tube measurement in the ventilation duct Reliable measurement results due to position-independent differential pressure sensor with high accuracy : 0563 1512 Product no longer available. Are you familiar with the alternative?Why not enjoy the benefits that it has to offer:>> To the product
